Description

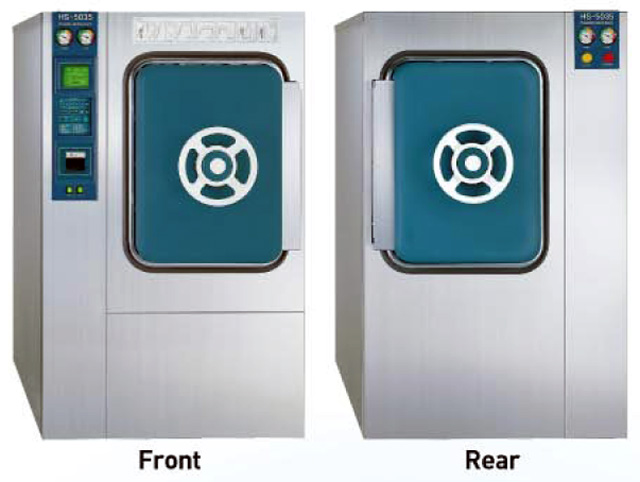

Style: single door /double door
Chamber: rectangular 350L volume
Overall size: single door 1010W x 1349D x 1715H (mm)
double door 1010W x 1460D x 1715H (mm)
Door operation : manual driven
Air removal: vacuum system by water ejector
Operating temperature: 110.0 -135.o deg.c.
Loading system:loading car & carriage
Display:TFT LCD Touch screen type
Power source: AC230V ,55A / AC380V , 32A
Steam source:built in & external steam generator
Compressed air source:external compressor(air flow 140L/min ,output 0.75Kw (1hp) , pressure 3-10bar , receive tank capac. 50L)
Recording; printer
Biological barrier: (dble door) Bio-Seal Device & door interlock
Weight:single door 833kg /dble door 980 kg
