Description

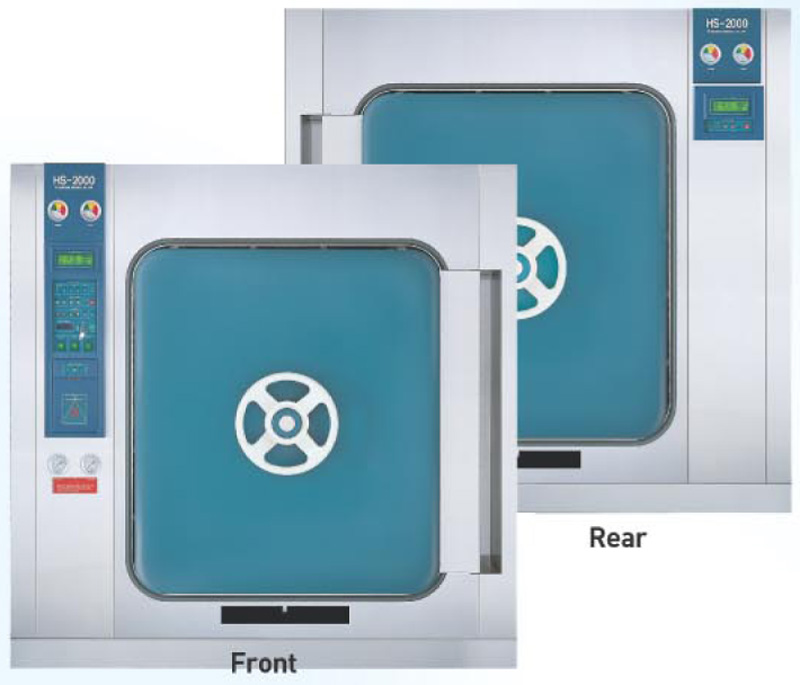

Style : single or double door
Chamber: rectangular 2180 litre volume
Overall size; single door 1875W x 2144 D x 1971H (mm)
double door : 1875 W x 2462D x 1971H (mm)
Door operation : Power driven
Air Removal: vacuum system by water removal
Operating temperature: 110.0 – 135.0 deg.C.
Loading system: Loading car & carriage
Display: TFT LCD Touch screen type
Power source: AC230V , 15A
Steam source: external steam generator
Compressed Air source: external compressor ( air flow 900 L per min)
Output : 5.5 Kw ( 7.5 HP) , Pressure 3-10 bar , Recieve tank capac 150 L
Troubles: checked by self diagnosis
Recording: Printer
Biological barrier (double door) ; Bio-Seal Device & door interlock
Weight: single door 3390 kg \ double door 3780kg
